SHEN ZHEN XIN MING HONG ELECTRONIC CO.,LIMITED professional manufacture SMD LED for 10 years with good quality and best performance. Our products include 0603 0805 1206 3528 5050 etc.

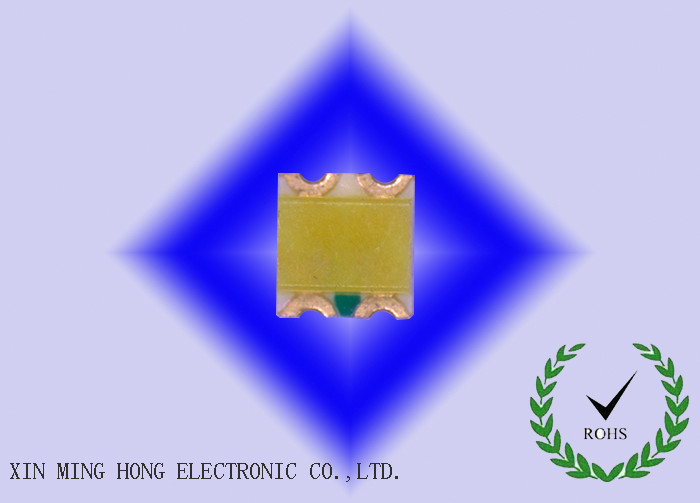

1615 BI-COLOR SMD LED CHIP
Features:
- (1)suitable for all SMT asembly methods.
- (2)compatible with infrared and vapor phase reflow solder process.
- (3)compatible with automatic placement equipment.
- (4)This product doesn't contain restriction substance,comply ROHS standard.
Applications:
- Turn singals
- Status indicators:comsumer & industrial
- Backlighting:LCDS,Key pads adverstising
- General use
Electrical and optical characteristics(Ta=25Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)C)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | Iv red white | 100 300 | - | 200 500 | mcd | If=20mA (Note 1) |
| Viewing Angle | 2θ1/2 | --- | 120 | --- | Deg | (Note 2) |
| Wave length | nm | 625 8000 | --- | 630 10000 | nm K | IF=20mA (Note 3) |
| Forward Voltage | VF red white | 1.8 3.0 | 2.0 3.2 | 2.4 3.4 | V | IF=20mA |
| Reverse Current | IR | --- | --- | 100 | µA | VR=5V |
Soldering
Preheating:140°C-160°C±5°C,within 2 minutes.
Operation heating:235°C(MAX.) within 10 seconds.
Gradual Cooling(Avoid quenching)
Preheating:140°C-160°C±5°C,within 2 minutes.
Operation heating:235°C(MAX.) within 10 seconds.
Gradual Cooling(Avoid quenching)
Preheating:120°C-150°C, within 120-180 sec
Operation heating:245°C±5°C within 5 sec.260°C(MAX)
Gradual cooling(Avoid quenching)
|
|
RED & WHITE BI-COLOR SMD LED, EXCELLENT QUALITY LED,LED CHIP, 0605 SMD LED, SUPER BRIGHT LED,LOW POWER LED,BI-COLOR LED Images
|
